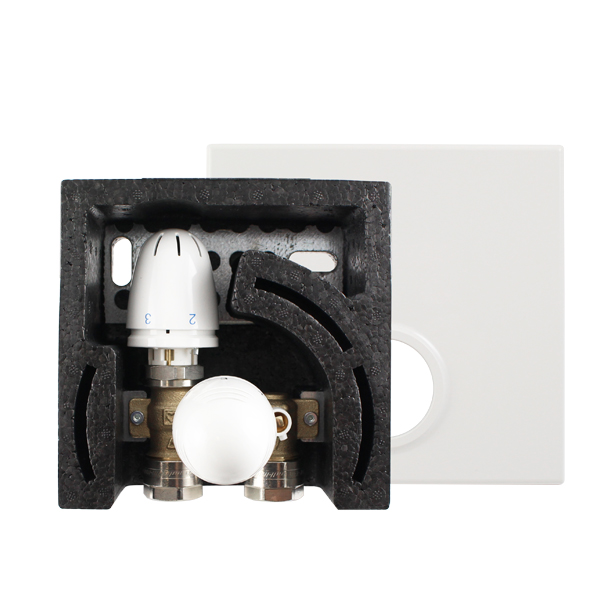

With thermostatic head MINI (1 9200 60) for control of the room temperature and a return temperature limiter MINI GS (1 9201 06). Set point range of thermostatic head: 6-28°C, wet point range of return temperature limiter: 25-60°C, with air vent and cover plate (white RAluminium 9010, 1 8100 52). Insulation box made from EPP for flush mounting, mounting brackets included. Compression adapters G 3/4" Euro-cone (1 6098 xx) must be ordered separately.
Kods | Apraksts |
|
---|---|---|
1 8100 30 | HERZ-FLOORFIX COMPACT |
|
