DE LUXE 3000 Connection system
DE LUXE 3000
| EAN | Bst.Nr. | ||
|---|---|---|---|

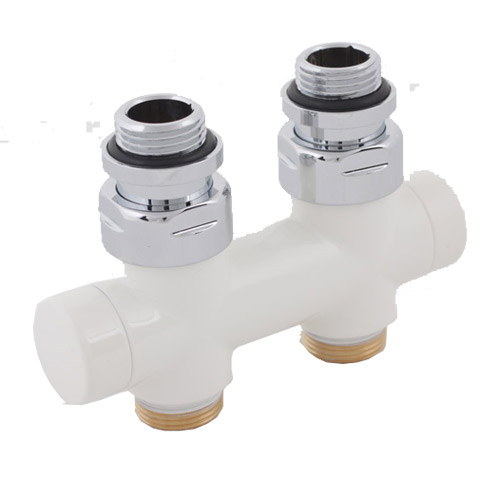

 | H3000-Design, straight model valve for two-pipe system, white Straight model for two-pipe systems, pipe center distance 50 mm, radiator connection G 3/4, freely moving nut.Pipe connection with male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80035 1 | S 3266 04 |
H3000-Design, straight model valve for two-pipe system, chrome-plated Straight model for two-pipe systems, pipe center distance 50 mm, radiator connection G 3/4, freely moving nut.Pipe connection with male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80034 4 | S 3266 01 | |
 | H3000-Design, straight model valve for one-pipe system, white Straight model for one-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut.Pipe connection with male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80033 7 | S 3166 04 |

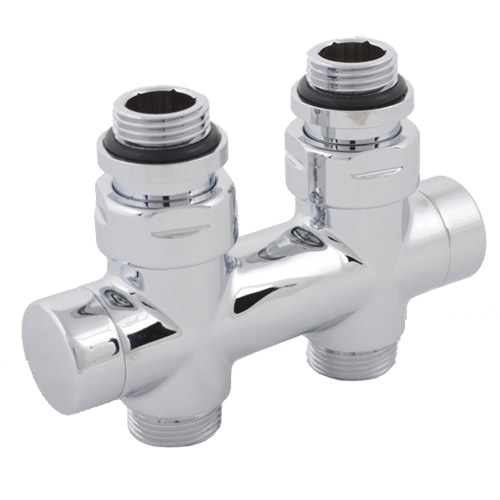

H3000-Design, straight model valve for one-pipe system, chrome-plated Straight model for one-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut.Pipe connection with male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80032 0 | S 3166 01 | |

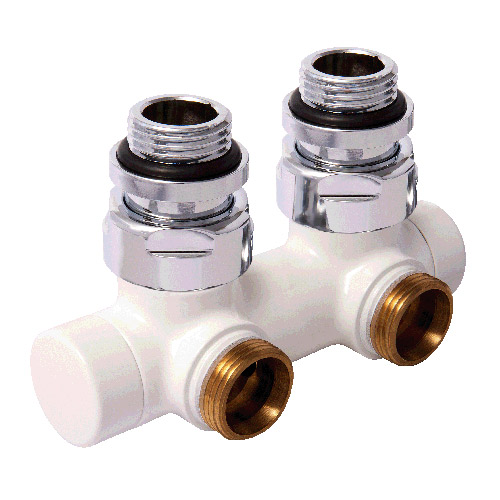

 | H3000-Design, angle model valve for two-pipe system, white Angle model for two-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut. Pipe connectionwith male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80007 8 | S 3266 14 |
H3000-Design, angle model valve for two-pipe system, chrome-plated Angle model for two-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut. Pipe connectionwith male thread G 3/4 with cone seal for compression adapter.Compression adapters have to be ordered separately. | 80006 1 | S 3266 11 | |
 | H3000-Design, angle model valve for one-pipe system, white Angle model for one-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut, chrome-plated.Pipe connection with male thread G 3/4 with cone seal for compression adapter. | 80009 2 | S 3166 14 |

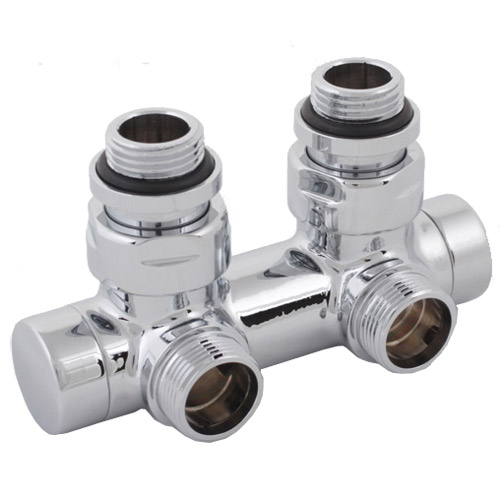

H3000-Design, angle model valve for one-pipe system, chrome-plated Angle model for one-pipe systems, pipe center distance 50 mm,radiator connection G 3/4, freely moving nut, chrome-plated.Pipe connection with male thread G 3/4 with cone seal for compression adapter. | 80008 5 | S 3166 11 |
