Installation examples

Move the cursor
over the components to identify them

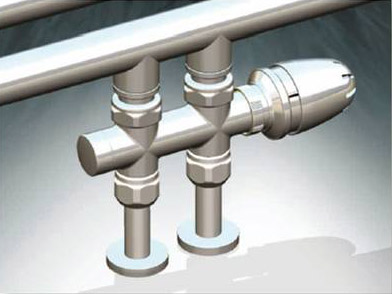

HERZ-Design Thermostatic Head
MINI-GS, chrome-plated
S 9200 31* Herz-TS-3-Axis Valve -"CD"
- Design, chrome-plated
S 7646 41* Compression adapter
15 mm (2 Pcs.)
S 6286 15 Pipe Cover Set
Chrome-plated S 6822 00 * The digit „4“ in place of „1“ at the end of the order number refers to the white model.

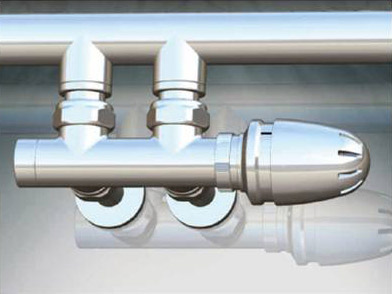

HERZ-Design Thermostatic Head
MINI-GS, chrome-plated
S 9200 31* HERZ-VUA-50-Design four port
angle model valve for one-pipe system
S 7784 41* Compression adapter
16*2 mm (2 Pcs.)
S 6066 16 Pipe Cover Plate S 6822 01 * The digit „4“ in place of „1“ at the end of the order number refers to the white model.
HERZ-Design Thermostatic Head
MINI-GS, chrome-plated
S 9200 31* H3000-TS-Design
straight model valve for one-pipe system
S 7646 41* Compression adapter
45 mm (2 Pcs.)
S 6286 15 Pipe Cover Plate S 6822 00 * The digit „4“ in place of „1“ at the end of the order number refers to the white model.

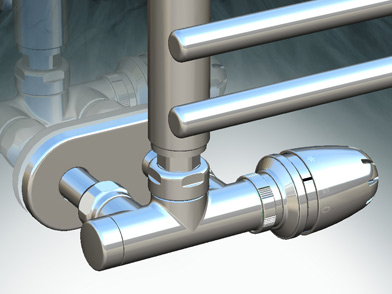

HERZ-Design Thermostatic Head
MINI-GS chrome-plated
S 9200 31* H3000-TS-Design
angle model valve for two-pipe system
S 3792 41* Compression adapter
16*2 mm (2 Pcs.)
S 6284 14 Pipe Cover Plate S 6822 01 * The digit „4“ in place of „1“ at the end of the order number refers to the white model.
